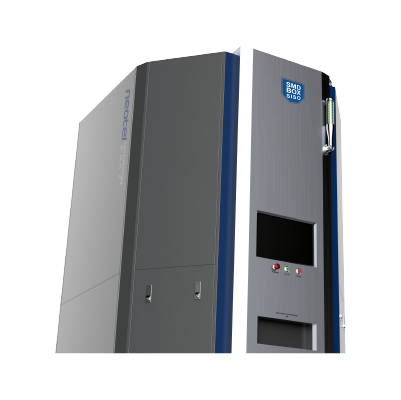

SMD BOX SISO
Single-Reel Automated Storage
SMD BOX SISO operates in Single-In Single-Out mode, precisely storing and retrieving one reel at a time. With a 1,000-reel capacity and the smallest footprint in the SMD BOX family, it is the ideal entry point for small-batch production and smart factory upgrades. Simply load a reel and the system automatically identifies, positions, and stores it. Retrieval follows work orders with strict FIFO enforcement.
The Storage Hub of the Material Loop: Storage, Retrieval & Return
SMD BOX SISO handles Storage (step 2), Retrieval (step 3), and Return (step 6) in the material closed loop. After registration, materials are automatically stored; work orders trigger precise retrieval; and remaining materials return to storage after production. As the entry-level fully automated storage system, SISO delivers complete closed-loop coverage with the smallest footprint.
Assign digital identity
Smart slot management
FIFO guaranteed
Seamless Integration
Update inventory data
Entry-Level, Fully Automated, Zero Compromise
Despite being the entry-level model in the capacity line, SMD BOX SISO delivers the same core capabilities as premium models across automatic identification, precision handling, and system integration, ensuring complete material management with no blind spots.
- Single-in single-out mode with individual reel tracking
- Automatic barcode scanning with precise slot positioning
- FIFO enforcement to prevent material expiry and stagnation
- Smallest footprint in the entire SMD BOX family
- 1,000-reel capacity covers 1-2 production lines
- Standard 220V power, no special infrastructure required
- Powered by SMF intelligent material control platform
- Work order kitting, MSD tracking, and full traceability
- AGV integration for fully automated material transport
SMD BOX SISO Technical Specifications
Compact design with standardized interfaces, purpose-built for smart upgrades on small-batch SMT production lines.
| Parameter | SMD BOX SISO Specification |
|---|---|
| Operating Mode | Single-In Single-Out (SISO), one reel per operation |
| Max Capacity | 1,000 reels |
| Reel Compatibility | 7-15 inch standard SMT reels |
| Barcode Reading | 1D and 2D barcode compatible, automatic reel identification |
| Storage Strategy | FIFO, work order-based precision dispatch |
| System Integration | AGV integration, RESTful API / SQL direct connection |
| Software Platform | SMF intelligent material control (work orders, MSD tracking, traceability) |
| Power Supply | 220V standard power, no special infrastructure |
| Reliability | 5,000+ hours mean time between failures |
Enterprise Integration & Material Traceability
Connects to shop-floor systems through open industrial interfaces and exposes a complete material traceability data model — every store and retrieve operation is reported to MES/WMS/ERP and fully auditable.
- Receives high-level store/retrieve commands and reports completed operations
- Supports simultaneous inbound and outbound handling
- AGV/AMR docking for unmanned line-side delivery
- Safe manual extraction in case of power loss
- Material IDunique identifier
- Timestampper operation
- OperationStore / Retrieve
- ResultSuccess / Failure
- Storage Locationslot reference
- Error Codeif applicable
Reliability, Safety & Compliance
Engineered for demanding, ESD-sensitive electronics manufacturing — with target performance, functional-safety design, and a standards-compliant design approach suited to automotive, medical, and other high-reliability sectors.
Compliance scope, certifications and performance figures are confirmed per project, configuration and region.
Start with SISO, Scale as You Grow
SMD BOX SISO is the starting point of the capacity line. As production scales up, you can seamlessly upgrade to higher-throughput models along the capacity line, effectively protecting your initial investment.
Current Product
High Throughput
Mid-to-Large Scale
20,000-Reel Flagship
Assign UID identity
Entry-level automated storage
Seamless Integration
Update inventory data
Is SMD BOX SISO Right for Your Factory?
Best fit
Small-batch, high-mix production on 1–2 SMT lines. The entry point of the capacity line with the smallest footprint in the SMD BOX family.
Performance (as specified)
1,000-reel capacity with automatic identification, positioning and storage — load a reel and the system does the rest.
Deployment requirements
Smallest SMD BOX footprint; sized for smart-factory upgrades in constrained floor space. Site survey confirms placement and power.
Integration
Runs on the shared SMF platform; upgrade seamlessly along the capacity line (MIMO, DUO, XLR) as production scales, protecting the initial investment.
Support
Global support network: 7×24 coverage, 15+ service locations, 98% customer satisfaction. Confirm on-site coverage for your region with our team.
What shapes your quote
Line count, reel mix, expected growth path along the capacity line, and ERP/MES integration scope.
Frequently Asked Questions
Common questions about the SMD BOX SISO single-in single-out automated storage system. For further inquiries, please contact our technical consultants.
What production scale is the SISO suited for?
What is the difference between SISO, MIMO, and DUO?
I already have a SISO. What if my production scales up?
Can it integrate with our ERP/MES system?
What infrastructure is needed to deploy SISO?
Find the Best SMD BOX Solution for You
Not sure if SISO is the right fit? Our selection consultants will recommend the optimal SMD BOX model based on your production scale, material types, and automation goals.
