● Standard · Sensor-Enabled

NEO LIGHT Plus
Sensor-Type Smart Reel Rack

NEO LIGHT Plus is a sensor type smart reel rack: building on PTL light guidance, it adds position sensors that automatically detect reel placement and removal — no manual barcode scanning needed. With 1,400-reel capacity, IPC-1782 traceability compliance, and an optional touchscreen interface, it is purpose-built for high-compliance production lines.

1,400
Reel Capacity
7-15″
Reel Sizes
Auto
Sensor Confirm
IPC-1782
Traceability
Request a Demo Download Brochure

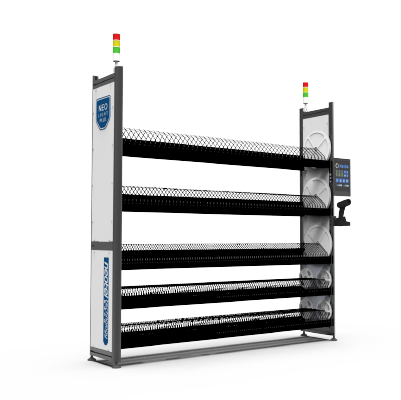

NEO LIGHT Plus sensor-based smart reel rack for SMT material tracking
CLOSED-LOOP POSITIONING

The Storage Hub of the Material Loop: Stocking, Picking & Return

NEO LIGHT Plus handles Storage (②), Picking (③), and Return (⑥) in the material closed loop. In the semi-auto ecosystem, NEO SCAN handles registration, NEO LIGHT Plus manages storage, picking and return, while NEO COUNTER X400 handles remaining-quantity counting.

1
Register
Scan incoming reels
Create digital identity
NEO SCAN
→
2
Store
Sensor-detected stocking
Auto-confirmed slot
NEO LIGHT Plus
→
3
Pick
Light + sensor confirm
Scan-free auto pick
NEO LIGHT Plus
→
4
Production
Material Ready
Seamless Integration
Powering Your Production
→
5
Count
X-ray remaining qty
Update inventory
NEO COUNTER X400
⑥ Return: Remaining reels after counting return to NEO LIGHT Plus → back to step ②, ready for the next pick cycle
3/6

Storage Hub Across 3 Steps — Store · Pick · Return

NEO LIGHT Plus handles Storage (②), Picking (③), and Return (⑥) in the material closed loop. Light + sensor dual detection auto-confirms every transaction, enabling scan-free full traceability.

CORE CAPABILITIES

Light + Sensor Dual Detection: Scan-Free Automatic Tracking

NEO LIGHT Plus delivers value across three dimensions: automatic sensor detection, IPC-1782 traceability compliance, and system integration, providing a scan-free smart storage solution for high-compliance SMT production lines.

Position Sensor Auto-Detection
  • Position sensors added on top of PTL light guidance
  • Auto-detects reel placement/removal, no manual confirm
  • Real-time inventory updates, eliminates human error
Scan-free auto confirmation
IPC-1782 Traceability Compliance
  • Meets IPC-1782 component traceability standard
  • Complete audit trail for every transaction
  • Ideal for automotive, medical, and aerospace industries
IPC-1782 compliant
SMF Platform & Optional Touchscreen
  • Powered by SMF smart material control platform
  • Optional touchscreen interface for intuitive operation
  • RESTful API / SQL direct connection to ERP/MES
Seamless ERP/MES integration
SPECIFICATIONS

NEO LIGHT Plus Technical Specifications

Light + sensor dual detection, fixed installation, IPC-1782 traceability compliant. Purpose-built for high-compliance SMT production lines.

Parameter NEO LIGHT Plus Spec
Picking Technology Pick-to-Light + Position Sensor Dual Detection
Max Capacity 1,400 reels
Reel Compatibility 7″ / 13″ / 15″ standard SMT reels
Inventory Confirmation Automatic sensor detection (no manual scanning)
Traceability Standard IPC-1782 Component Traceability
User Interface Optional touchscreen
Connectivity WiFi / LAN
Power Supply AC 220V / 50Hz
Software Platform SMF Smart Material Control Platform
Dimensions Customizable
INTEGRATION & TRACEABILITY

ERP/MES Integration & Material Traceability

NEO LIGHT connects to your shop-floor systems through open interfaces. Every light- or sensor-guided store and pick is logged and reported to MES/WMS/ERP in real time, so inventory stays accurate without changing how your lines already run — semi-automatic control with full digital traceability.

REST APIOPC UA1D / 2D BarcodeERP / MES / WMSLight / Sensor Guided
ERP / MES Connectivity
  • Store and pick operations reported to MES/WMS/ERP for real-time inventory sync
  • Barcode scan auto-matches each reel to its material ID and slot
  • Deploys alongside existing lines — no line rebuild or AGV required
  • Role-based operator login with full action history
MES / WMS / ERP ready
Material Traceability Data Model
  • Material IDfrom reel barcode
  • Slot Locationshelf / position
  • OperationStore / Pick
  • Operatorlogin / badge
  • Timestampper operation
  • ResultConfirmed / Exception
Exposed via REST / OPC UA
RELIABILITY & COMPLIANCE

Reliability, ESD Safety & Compliance

Built for daily electronics-manufacturing duty with ESD-safe handling throughout and a standards-compliant design approach suited to automotive, medical and other high-reliability sectors.

≥99.9%
Inventory Accuracy
designed target
≥95%
System Availability
designed target
ESD-safe
Handling Surfaces
dissipative + grounded
10 yr
Service Life
utilization-based PM
ESD Protection — IEC 61340-5-1
Dissipative handling surfaces and hard grounding for ESD-safe reel and component storage
CE — Low Voltage (LVD) + EMC
Designed for CE conformity under the Low Voltage and EMC directives with a complete technical file
RoHS / REACH Materials
Restricted-substance-compliant materials and finishes throughout the shelving system
Data Security — IEC 62443 ready
Access control and secure data exchange for ERP/MES integration and operation logs

Compliance scope, certifications and performance figures are confirmed per project, configuration and region.

ECOSYSTEM & UPGRADES

Plus — The Technology Upgrade from PTL

Plus is the technology upgrade of PTL, adding position sensors on top of light guidance for scan-free automatic confirmation. For mobile deployment capability, further upgrade to Mobile Plus (sensors + caster base).

NEO LIGHT Product Matrix
← Light Guidance   |   Sensor Detection →
Entry Level
PTL
Basic Light + Fixed
Current Product
Plus
Sensor Detection + Fixed
Deployment Upgrade
Mobile
Basic Light + Mobile
Dual Upgrade
Mobile Plus
Sensor Detection + Mobile
↑ Fixed ↓ Mobile
Technology Upgrade Path
PTL
Light Guidance + Scan Confirm
Entry Level
→
Plus
Light + Sensor Auto-Detection
Current Product
Deployment Upgrade Path
Plus
Fixed Installation
Current Product
→
Mobile Plus
Sensor Detection + Casters
Flexible mobile deployment
Full-Auto Alternative: SMD BOX provides fully automated, unattended storage with automatic identification, stocking, and work-order-based dispensing — ideal for high-volume lines or factories pursuing end-to-end automation. Explore SMD BOX →
Semi-Auto Ecosystem Loop
Register
NEO SCAN
Semi-auto scan registration
Create UID identity
→
Current Product
NEO LIGHT Plus
Store · Pick · Return
Sensor-Enabled Smart Rack
→
Powering Your Production
Production
Material Ready
Seamless Integration
→
Counting
NEO COUNTER X400
X-ray precision counting
Update inventory data
BUYER CHECK

Is NEO LIGHT Plus Right for Your Factory?

Best fit

High-compliance SMT lines that need automatic pick confirmation and IPC-1782 component traceability.

Performance (as specified)

1,400-reel capacity; position sensors detect reel placement and removal instantly — no manual scanning — and each transaction is logged with timestamp, operator ID and reel UID.

Deployment requirements

Fixed installation like PTL; optional touchscreen interface. Standard power and network.

Integration

SMF platform with RESTful API and SQL direct connection, validated with SAP, Oracle and other mainstream ERP/MES.

Support

Global support network: 7×24 coverage, 15+ service locations, 98% customer satisfaction. Confirm on-site coverage for your region with our team.

What shapes your quote

Rack count, compliance scope (IPC-1782), touchscreen option, and ERP/MES integration.

Request a Quote Get the NEO LIGHT Plus datasheet in the Download Center →
FAQ

Frequently Asked Questions

Common questions about the NEO LIGHT Plus sensor-enabled smart reel rack. For additional inquiries, please contact our technical consultants.

What is the key difference between Plus and PTL?
PTL uses Pick-to-Light guidance where operators manually scan barcodes to confirm inventory changes. Plus adds position sensors on top of PTL light guidance, automatically detecting reel placement and removal without any manual scanning. Both models share the same 1,400-reel capacity, software platform, and ERP/MES integration capabilities. Plus additionally meets the IPC-1782 component traceability standard, making it ideal for high-compliance environments.
How do the position sensors work?
NEO LIGHT Plus has position sensors installed at every slot. When a reel is placed or removed, the sensor automatically detects the change and instantly updates the system inventory — no operator scanning required. The system automatically logs each transaction with timestamp, operator ID, reel UID, and other traceability data to meet IPC-1782 requirements.
Can we upgrade from PTL to Plus?
Yes. Position sensor modules can be retrofitted to existing PTL shelving without replacing the entire rack structure. After the upgrade, you gain automatic sensor confirmation and IPC-1782 traceability compliance. Contact our technical team to develop a specific upgrade plan for your PTL model. Contact Technical Support →
What compliance scenarios is Plus suited for?
NEO LIGHT Plus meets the IPC-1782 component traceability standard and is particularly suited for: automotive electronics (IATF 16949 quality system requiring full material traceability), medical devices (FDA/GMP documentation requirements), aerospace (AS9100 quality management traceability), and any production environment requiring complete audit trails for material transactions.
Can it integrate with our ERP/MES system?
Absolutely. The SMF smart material control platform powering NEO LIGHT Plus offers RESTful API, SQL direct connection, and other standard integration methods. It has been validated with SAP, Oracle, and other mainstream ERP/MES systems. Plus also supports an optional touchscreen interface for operators to view inventory status, work order information, and transaction logs directly. SMF provides complete API documentation and a test sandbox environment, with full technical support throughout the integration process.
