SMD BOX XLM
PCB Magazine Smart Warehouse — Automated Storage & Retrieval

SMD BOX XLM is a PCB magazine smart warehouse — an automated PCB magazine storage & retrieval system (AS/RS) for SMT factories. It stores, retrieves and returns PCB magazines with FIFO/LIFO dispatch, magazine-level event logging and full traceability, MES/ERP integration over IPC-CFX and OPC UA, RFID magazine identification, and AMR/AGV handoff — going beyond static ESD magazine racks and simple inline buffers.

FIFO/LIFO
Strategy-based Retrieval
Event Log
Auditable Actions
MES/ERP
System Integration
AMR/AGV
Automated Transport
Book a Demo Download Datasheet
SMD BOX XLM PCB Magazine Automated Storage System - Neotel Technology
CE-Ready Design ESD-Safe Handling Designed for ≥95% Uptime 10-Year Design Life IPC-CFX · OPC UA · REST · MQTT
MATERIAL LOOP

The Storage Hub: Magazine Storage Across Three Steps

SMD BOX XLM handles Storage (Step 2), Retrieval (Step 3), and Return (Step 6) in the material loop — magazines are automatically stored after registration, precisely retrieved by work order or strategy rules, and remaining magazines are returned to storage after production.

1
Register
Scan incoming barcodes
Create digital identity
NEO SCAN PLUS
→
2
Store
Auto magazine storage
High-density management
SMD BOX XLM
→
3
Retrieve
FIFO/LIFO strategy retrieval
Auditable event logging
SMD BOX XLM
→
4
Production
Material Ready
Seamless line integration
Powering Your Production
→
5
Count
X-ray counting of
remaining quantities
NEO COUNTER X800
Step 6 — Return: Remaining magazines after production are automatically returned to SMD BOX XLM → back to Step 2, ready for the next retrieval cycle
3/6

The Storage Hub Across Three Steps — Store · Retrieve · Return

SMD BOX XLM handles Storage (Step 2), Retrieval (Step 3), and Return (Step 6) in the material loop, providing FIFO/LIFO strategy management and event logging traceability on top of fully automated storage and retrieval, ensuring end-to-end magazine control.

CORE CAPABILITIES

From Manual Searching to System-Managed Control — Three Capabilities in One

SMD BOX XLM delivers complete magazine management across three dimensions: strategy-based retrieval, event logging with traceability, and system integration, solving the root causes of unclear status, unknown locations, and unauditable actions.

FIFO/LIFO Strategy-based Retrieval
  • Choose first-in-first-out or last-in-first-out based on turnover rules
  • Configure retrieval logic according to process and logistics strategies
  • Reduce misallocation and stagnation caused by manual judgment
Configurable Strategy · Streamlined Turnover
Event Logging & Status Traceability
  • Automatically records every magazine movement and status change
  • Faster anomaly detection with a clear chain of responsibility
  • Traceable event logs that satisfy audit requirements
Auditable Actions · Full Traceability
MES/ERP/AMR System Integration
  • Interface with MES/ERP via REST API / OPC UA
  • Supports AMR/AGV automated loading, unloading, and delivery
  • Brings line-side buffering and turnover into a unified material flow
Integration-Friendly · Lower Integration Cost

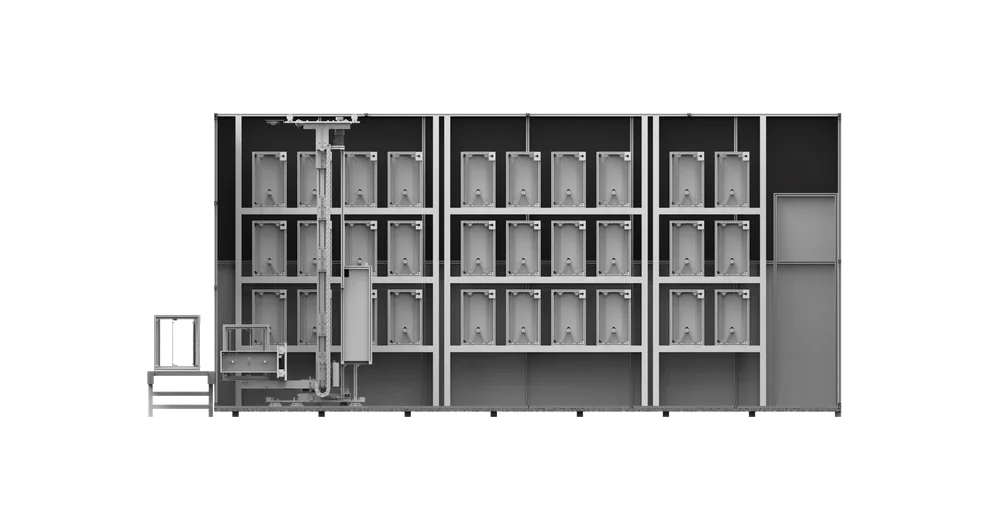

SMD BOX XLM Internal Cross-Section View Magazine Storage Racks and Robot - Neotel Technology
Internal structure: High-density magazine storage racks and automated pick-and-place mechanism

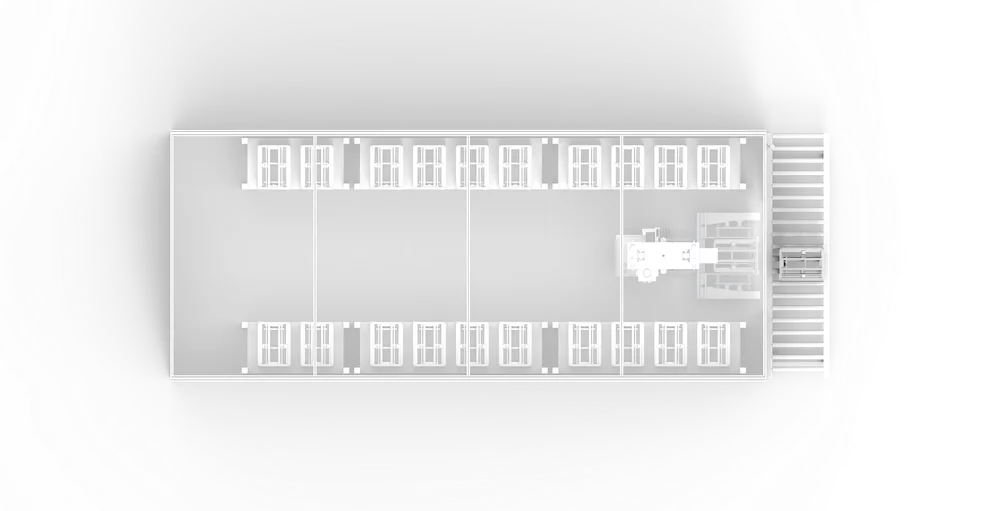

SMD BOX XLM Top View Layout PCB Magazine Storage System - Neotel Technology
Top view layout: I/O port positions and internal space planning

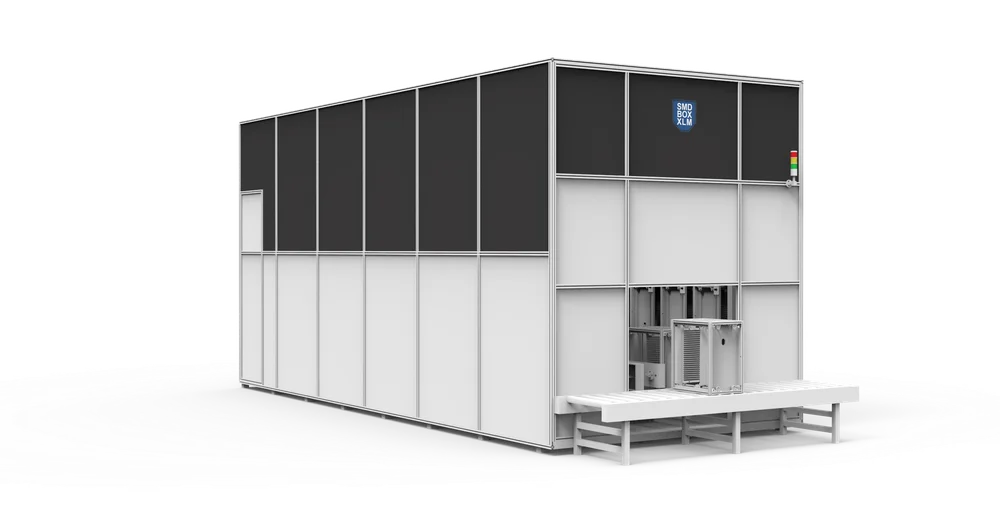

SMD BOX XLM PCB Magazine Automated Storage System Side 3D Rendering - Neotel Technology
Side view: I/O ports and external docking interfaces

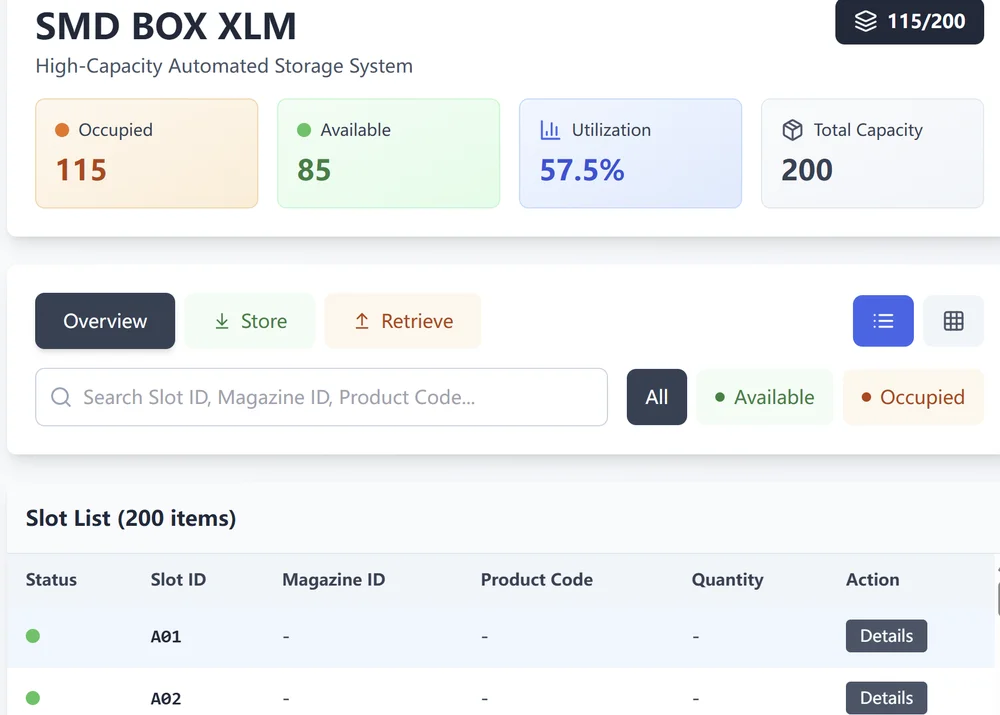

SMD BOX XLM Software Interface Magazine Management and Traceability - Neotel Technology
Software interface: Magazine status monitoring and event traceability
SPECIFICATIONS

SMD BOX XLM Technical Specifications

Automated PCB magazine storage system designed for SMT production lines and assembly stages. Supports FIFO/LIFO strategies, event logging, and multi-system integration.

Parameter SMD BOX XLM Specification
Storage Capacity 80–300 magazines (expandable by configuration)
Magazine Compatibility Supports M/L size standard PCB magazines
Cycle Time 10–40 seconds/cycle, varies by configuration and magazine size
Throughput 60–240 cycles/hour (determined by cycle time and I/O configuration)
Retrieval Strategy FIFO/LIFO, configurable based on process and logistics strategy
Identification & Tracking Barcode / DMC / RFID, supports multiple identification methods
I/O Loading Supports manual / AMR / AGV loading and unloading methods
System Interface IPC-CFX, OPC UA, REST API, integrates with MES/ERP/host systems
Line Interface SMEMA compatible (configurable per project requirements)
Event Logging Full-process event logs, every movement and status change is traceable
Safety E-stop, door interlock, safety scanner and other industrial-grade safety features
Software Platform SMF Smart Material Control Platform (status monitoring, event traceability, strategy management)
Magazine Dimensions Standard M/L PCB magazines; configurable per project (dimensions confirmed against your magazine spec)
Max Magazine Weight Lifting and storage mechanisms dimensioned to the project’s maximum magazine weight
Footprint Modular; configurable W×D×H to fit available floor area and height zones (CAD layout provided)
Power Supply 400 V AC / 230 V AC, 50/60 Hz, with surge and transient protection
Compressed Air Standard pneumatic supply with oil/water separation (if required by configuration)
Operating Environment 15–25 °C, 30–65% RH — suitable for continuous multi-shift operation
Noise Level ≤ 70 dB(A) during normal operation
System Availability Designed for ≥95% availability with high inventory and handling accuracy
Service Life Designed for a 10-year service life with utilization-based preventive maintenance
INTEGRATION & TRACEABILITY

Enterprise Integration & Magazine-Level Traceability

SMD BOX XLM connects to shop-floor systems through open industrial interfaces and exposes a complete magazine-level traceability data model — every store and retrieve operation is reported to MES/WMS/ERP and fully auditable. It plugs into your existing line — magazine loaders/unloaders, conveyors and AMR/AGV fleets — over standard protocols, so there is no rip-and-replace.

IPC-CFX OPC UA REST API MQTT EtherNet/IP RFID magazine ID SMEMA line interface
Host & AMR Integration
  • Receives high-level store/retrieve commands and reports completed operations
  • Supports simultaneous inbound and outbound handling
  • AMR/AGV conveyor docking with configurable transfer-interface height
  • Safe manual magazine extraction in case of power loss
MES / WMS / ERP ready
Magazine Traceability Data Model
  • Magazine IDunique identifier
  • Timestampper operation
  • OperationStore / Retrieve
  • ResultSuccess / Failure
  • Storage Locationslot reference
  • Error Codeif applicable
Exposed via OPC UA / REST / MQTT
RELIABILITY & COMPLIANCE

Reliability, Safety & Compliance

Engineered for demanding, ESD-sensitive electronics manufacturing — with target performance, functional-safety design, and a standards-compliant design approach suited to automotive, medical, and other high-reliability sectors.

≥95%
System Availability
designed target
≥99.99%
Inventory Accuracy
designed target
≥99.99%
Handling Yield
no magazine damage
10 yr
Service Life
utilization-based PM
CE / Machinery Regulation (EU) 2023/1230
Designed for CE conformity with ISO 12100 risk assessment and complete technical file
Functional Safety — ISO 13849-1 (PL) / IEC 62061 (SIL)
Safety functions designed to ISO 13849-1 / IEC 62061: E-stop, guard interlocks, safe stop, anti-collision
ESD Protection — IEC 61340-5-1
Hard-grounded handling and dissipative contact surfaces for ESD-safe PCB storage
Cybersecurity — IEC 62443 & SBOM
Access control, secure updates, and Software Bill of Materials (EU CRA ready)

Compliance scope, certifications and performance figures are confirmed per project, configuration and region.

Scalable & resilient: storage capacity, throughput, and unit count scale on the standard platform with dynamic (chaotic) storage allocation. Multi-unit configurations avoid single-point-of-failure conditions to keep critical material flow running.
HOW IT COMPARES

SMD BOX XLM vs Other PCB Magazine Smart Warehouse Systems

A capability comparison of automated PCB magazine storage and retrieval against the systems most often shortlisted alongside SMD BOX XLM — PassionIoT Magazine Smart Warehouse, ASYS Storage & Buffer, and CTS Intralogistics. Compared on the capabilities that matter for SMT WIP control: dispatch strategy, magazine-level traceability, open integration, and material handoff.

Capability SMD BOX XLM PassionIoT
Magazine Smart Warehouse		 ASYS
Storage & Buffer		 CTS
Intralogistics
Dedicated PCB magazine storage & retrieval (AS/RS) ✓ Purpose-built magazine AS/RS ✓ Magazine Smart Warehouse Storage & buffer for magazines/trays/boxes (per published specifications) General intralogistics — not a dedicated magazine AS/RS
FIFO / LIFO dispatch strategy ✓ Configurable FIFO/LIFO Not stated Buffer systems (per published specifications) Not stated
Magazine-level event logging & traceability ✓ Every store/retrieve logged Not stated Per published specifications ✓ Line-wide tracking & tracing
MES / ERP integration ✓ via IPC-CFX / OPC UA / REST ✓ MES / WMS Per published specifications ✓ ERP / MES
Open integration protocols (IPC-CFX, OPC UA) ✓ IPC-CFX + OPC UA + REST API Not stated Not stated Manufacturer-independent networking (protocols not stated)
RFID magazine identification ✓ Barcode / DMC / RFID Not stated Not stated Not stated
AMR / AGV handoff ✓ Manual / AMR / AGV ✓ AGV Per published specifications ✓ AMR fleets

Comparison based on each vendor’s publicly published product information (May 2026). “Per published specifications” indicates figures cited from the vendor’s catalog where a live technical page was not directly accessible. “Not stated” means the capability was not described on the vendor’s public page and may still be available on request. Trademarks belong to their respective owners.

ECOSYSTEM

Magazine Storage Solution Within the Fully Automated Material Loop

SMD BOX XLM is the core of the fully automated magazine storage solution. Working alongside the NEO SCAN registration system and NEO COUNTER counting system, it forms a complete closed-loop material management ecosystem.

Register
NEO SCAN PLUS
Fully automatic scanning
UID creation
→
Current Product
SMD BOX XLM
Store · Retrieve · Return
Magazine automated storage
→
Powering Your Production
Production
Material Ready
Seamless line integration
→
Counting
NEO COUNTER X800
X-ray counting
Inventory update
Reel-level storage solution: If you manage standard SMT reels rather than PCB magazines, explore the SMD BOX capacity line products (SISO/MIMO/DUO/XLR) and choose the model that matches your production scale.
Container-level storage: If your materials flow in totes or bins, SMD BOX XLC provides an automated container-level storage solution. XLM handles magazines, XLC handles totes — deploy both together to cover all material formats.
New to automated magazine handling? Read our guide to PCB magazine handling & storage — the maturity ladder from static ESD racks and loaders/buffers up to a fully automated PCB magazine smart warehouse, with help choosing the right rung for your line.
BUYER CHECK

Is SMD BOX XLM Right for Your Factory?

Best fit

SMT lines that need automated buffering and WIP control for PCB magazines — dimensioned for the SMT material flow, not a generic AS/RS.

Performance (as specified)

FIFO/LIFO dispatch strategies, magazine-level traceability, event logging and dynamic (chaotic) storage allocation; capacity and unit count scale on the standard platform.

Deployment requirements

Line-side integration for direct material handoff; scalable multi-unit layouts.

Integration

Open interfaces including REST API and OPC UA — MES/ERP call them directly for work-order-driven storage and retrieval. Deploy alongside reel-storage SMD BOX models for full coverage.

Support

Global support network: 7×24 coverage, 15+ service locations, 98% customer satisfaction. Confirm on-site coverage for your region with our team.

What shapes your quote

Magazine sizes and volumes, throughput per line, unit count, and MES/ERP/AMR interface scope.

Request a Quote Get the SMD BOX XLM datasheet in the Download Center →
FAQ

Frequently Asked Questions

Common questions about the SMD BOX XLM PCB magazine automated storage system. For further inquiries, please contact our technical consultants.

What is a PCB magazine smart warehouse?
A PCB magazine smart warehouse is an automated storage-and-retrieval system (AS/RS) that buffers PCB magazines line-side and dispatches them by FIFO/LIFO with RFID magazine identification, magazine-level event logging, and real-time MES/ERP synchronization. SMD BOX XLM is a PCB magazine smart warehouse purpose-built for SMT factories — it stores, retrieves and returns PCB magazines automatically, going beyond passive ESD magazine racks and simple inline magazine buffers.
What magazine retrieval strategies does SMD BOX XLM support?
SMD BOX XLM supports FIFO (first-in-first-out) and LIFO (last-in-first-out) as its primary strategies, with configurable retrieval and return logic based on process and turnover rules. FIFO is ideal for scenarios requiring magazines to be retrieved in storage order (e.g., time-sensitive materials), while LIFO suits high-frequency storage environments prioritizing the most recently stored magazines. Strategies are flexibly configured through the SMF software platform.
How does the XLM solve the problem of lost magazines and unclear status?
Through event logging and status visualization, SMD BOX XLM records every movement and location change as traceable data. The system tracks each magazine’s position, status (empty/full/WIP), and action history in real time, eliminating manual searching and misallocation. Managers can view the real-time status of all magazines at a glance through the SMF platform interface — no more relying on verbal inquiries or searching the floor.
How does the XLM integrate with MES/ERP/AMR?
SMD BOX XLM integrates with host systems through open interfaces including REST API and OPC UA. MES/ERP systems can directly call these interfaces for work order-driven storage and retrieval operations, enabling automatic data synchronization and reducing manual entry and errors. AMR/AGV automated transport docking is also supported, enabling unmanned magazine delivery from storage to line side. Detailed interface specifications and data dictionaries are available during the demo.
What is the difference between XLM and standard SMD BOX (reel storage)?
The core difference lies in the storage object: standard SMD BOX models (SISO/MIMO/DUO/XLR, etc.) manage SMT reels, while XLM manages PCB magazines. Magazines are typically used to carry PCB boards flowing between SMT and assembly stages. If your production line requires both reel storage and magazine storage, you can deploy SMD BOX reel storage alongside XLM magazine storage for complete material format coverage.
How does SMD BOX XLM compare to a PCB magazine rack, a magazine buffer, or a general AS/RS?
A passive PCB magazine rack only holds magazines on shelves — no tracking, no automation. A magazine buffer / buffer stacker temporarily holds magazines inline between processes. SMD BOX XLM is a fully automated PCB magazine stocker — an automated storage and retrieval system (AS/RS) purpose-built for SMT intralogistics: it automatically stores, buffers, retrieves and returns magazines with FIFO/LIFO strategy, magazine-level traceability, and MES/AMR integration. Compared with a general warehouse AS/RS, XLM is dimensioned for PCB magazines and the SMT material flow, integrating directly with line-side production.
Is magazine handling ESD-safe?
Yes. SMD BOX XLM is designed for ESD-sensitive PCB storage in line with IEC 61340-5-1: metallic transport and transfer parts are hard-grounded, and plastic or composite surfaces that contact magazines are dissipative. All boards and electronic assemblies inside magazines are handled as fully ESD-sensitive throughout storage, retrieval, and return.
Is the system CE compliant, and what functional-safety level does it meet?
The system is designed to comply with CE / Machinery Regulation (EU) 2023/1230, including an ISO 12100 risk assessment and complete technical file. Safety-related control follows ISO 13849-1 (Performance Level) or IEC 62061 (SIL), with safety functions designed for emergency stop, guard/door interlocking, safe stop of internal handling units, and anti-collision/overload protection. Final certification and the achieved PL/SIL per safety function are confirmed per project and region.
Which host protocols and MES/WMS/ERP integration are supported?
XLM exposes open industrial interfaces — IPC-CFX, OPC UA, REST API, MQTT and EtherNet/IP — for integration with MES, WMS and ERP. The host issues high-level store/retrieve commands and the system reports completed operations and events. A magazine-level traceability data model (Magazine ID, timestamp, operation, result, storage location, error code) is available through the supported interface; the full data dictionary is shared during the demo.
Does it use dynamic (chaotic) storage or fixed locations?
The system autonomously manages internal slot allocation, buffering and movements with dynamic (“chaotic”) storage, maximizing space utilization while keeping location accuracy and traceability for every magazine. It does not require product-specific information to perform its internal operations — it only reports operational events and magazine movements.
Can it run simultaneous inbound and outbound, and how is throughput scaled?
Yes — simultaneous inbound and outbound handling is supported, with achievable throughput and cycle times depending on configuration, magazine size and I/O setup. Capacity, throughput and unit count scale on the standard platform, and multi-unit configurations avoid single-point-of-failure conditions to keep critical material flow running.
What service and spare-parts support is available?
Neotel provides global service and spare-parts support through certified partners and distributors, including remote support and a recommended spare-parts list for local stock. The system is designed for a 10-year service life with utilization-based preventive maintenance. Regional response times and spare-parts logistics are confirmed for your location during the quotation.
