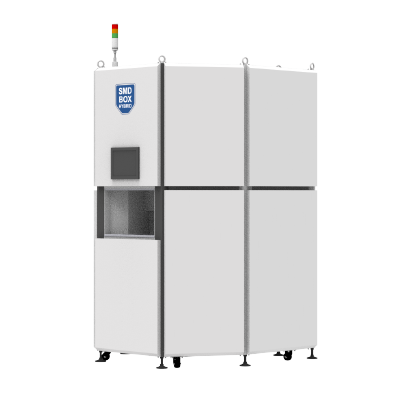

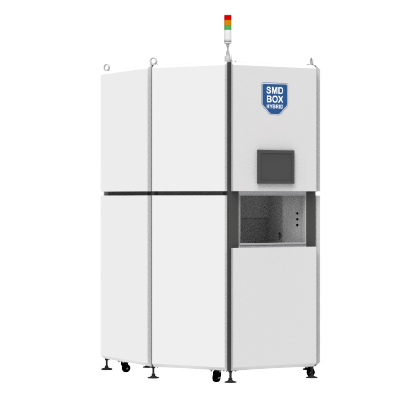

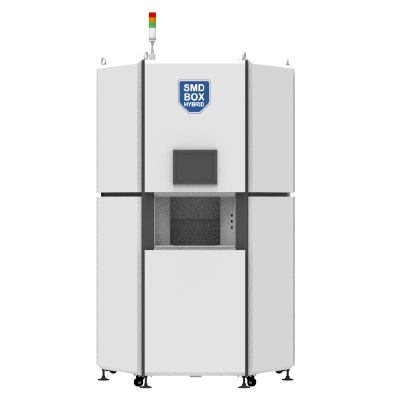

SMD BOX HYBRID

Intelligent PCB & Mixed Material Storage System

Revolutionary hybrid storage solution providing unprecedented flexibility for material management. Store and retrieve PCBs, feeders, product modules, and containers automatically with vision-guided robotics in a compact tower design that maximizes vertical space utilization.

Mixed material storage: PCBs, feeders, modules, containers

1D/2D vision recognition system

Internal robotic arm for maximum space efficiency

Tower design with 1.8㎡ capacity

pcb storage

10Kg

Max Weight

1.8㎡

Capacity

2.6m

Height

Versatile Material Storage

Store different materials of various sizes and weights in one system

PCBs

Printed circuit boards of various sizes and types

Feeders

SMT feeders and tape reels for production lines

Product Modules

Assembled modules and sub-assemblies

Containers

Boxes and containers with mixed components

Core Features

Advanced technology for flexible material management

Vision System

Embedded vision system reads 1D/2D codes, recognizes material types, and performs object detection

Robotic Arm

Internal robotics arm maximizes footprint usage with precise material handling capabilities

Tower Design

Vertical storage architecture allows efficient allocation of materials in minimal floor space

Flexible Storage

Accommodate materials of different sizes, weights, and types in a single system

Connectivity

API-based integration with MES/ERP systems for seamless workflow automation

Smart Management

Intelligent material tracking with complete traceability and inventory control

Advanced Vision Recognition

The embedded vision system provides intelligent material identification and tracking capabilities, ensuring accurate inventory management and automated material handling throughout your production process.

1D/2D Code Reading

Automatic barcode and QR code scanning

Material Type Recognition

Intelligent identification of different materials

Object Detection

Precise location and orientation detection

Quality Verification

Visual inspection for damage or defects

pcb storage

1D Barcode

PCB-2024-001

QR Code

FDR-SMT-456

Compact & Efficient Design

Maximizing storage capacity while minimizing footprint

Compact Footprint

With dimensions of just 1500×1500×2600mm, the HYBRID maximizes vertical space utilization to provide 1.8㎡ of storage capacity.

Flexible Capacity

Support for materials up to 10kg with adjustable storage configurations to accommodate various material types and sizes.

Technical Specifications

Detailed specifications for SMD BOX HYBRID

System Specifications
Dimensions (L×W×H)
1500×1500×2600mm
Maximum Capacity
1.8m²
Maximum Weight
10kg per item
Material Types
PCB, Feeders, Modules, Containers
Vision System
1D/2D Recognition
Handling System
Internal Robotic Arm
Software
SMF Integration
Connectivity
API, MES/ERP Compatible
pcb storage

1.8

Square Meters

Total storage capacity in a compact 1.5m × 1.5m footprint

SMF™

Powered by Smart Material Flow

Comprehensive software suite for material control, automation, and management

Work Order Management

Real-time scheduling

Component Profile

Material database

MSD Tracker

Moisture control

Connectivity

System integration

Analytics

Real-time reporting

Ultimate Flexibility in Material Storage

Experience unprecedented versatility with SMD BOX HYBRID. Store PCBs, feeders, modules, and containers in one intelligent system with vision-guided automation and compact tower design.
