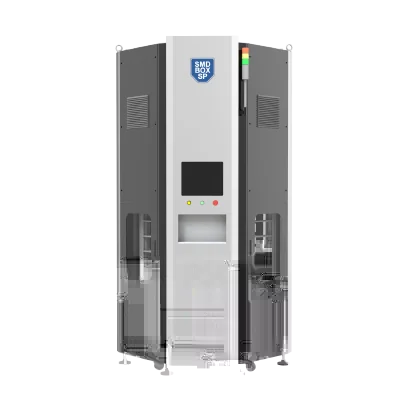

SMD BOX SP

Intelligent Solder Paste Handling Solution

Automated solder paste management system with precise temperature control, from refrigerated storage to ambient temperature conditioning and mixing. Ensure optimal solder paste performance with complete traceability and scheduled release for SMT production.

Refrigerated storage area (5-10°C)

Ambient temperature conditioning (4-6 hours)

Integrated mixer with programmable speed

IPC-1782 Level 4 traceability

SMD BOX SP G2

5-10°C

Refrigeration

4-6h

Conditioning

100%

Traceability

Understanding Solder Paste

Critical component in SMT assembly process

What is Solder Paste?

Solder paste is a combination of metal solder particles and flux. The flux cleans soldering surfaces of impurities and oxidation while providing temporary adhesion for surface mount components.

Critical Properties

Proper handling ensures solder paste maintains thixotropic properties during printing and placement, retaining tackiness for component adhesion during reflow.

Automated Handling Process

From receiving to production line release

Receiving

Solder paste intake

Cooling

5-10°C storage

Ambient

Temperature conditioning

Mixing

Homogenization

Release

Scheduled delivery

Traceability

Complete tracking

Core Features

Advanced capabilities for optimal solder paste management

Refrigeration Area

Maintains optimal 5-10°C storage temperature to preserve solder paste chemistry and extend shelf life

Ambient Temperature Zone

Programmable conditioning area ensures paste reaches room temperature before seal breaking (4-6 hours)

Integrated Mixer

User-controlled speed and timing ensures even distribution of separated materials throughout paste

Weight Scale

Precision weighing for accurate inventory management and usage tracking

1D/2D Recognition

Automatic barcode scanning for instant identification and tracking

Scheduled Release

Programmable material release synchronized with production schedules

Why Proper Handling Matters

Solder paste’s complex composition requires precise handling throughout its lifecycle. Without proper management, chemistry degradation occurs before use, leading to defects and production issues.

Print Quality

Temperature affects viscosity and print definition

Component Placement

Proper tackiness ensures components stay in position

Reflow Performance

Controlled chemistry ensures optimal solder joint formation

Cost Reduction

Minimize paste waste and eliminate process risks

Reflow Process Stages

150°C

Preheat

150°C

Preheat

150°C

Preheat

150°C

Preheat

Technical Specifications

Comprehensive specifications for SMD BOX SP

System Capabilities
Solder Paste Package
Jar, Cartridge
1D/2D Recognition
Yes
Weight Scale
Yes
Refrigeration Area
Yes
Temperature Range
5-10°C
Ambient Temperature Area
Yes
Mixer
Yes
Scheduled Release
Yes
Software
SMF Integration

IPC

IPC-1782 Compliant

Full compliance with IPC-1782 standard for manufacturing traceability and supply chain risk mitigation

Smart Integration

Seamless connectivity with your production ecosystem

IT Connectivity

SMD BOX SP powered by Smart Material Flow software provides seamless integration to your existing IT infrastructure.

Complete Traceability

Achieve IPC Level 4 traceability with automated tracking at every stage of the solder paste handling process.

Optimize Your Solder Paste Management

Reduce waste, eliminate process risks, and ensure consistent print quality with SMD BOX SP. Experience automated solder paste handling with complete temperature control and traceability.
